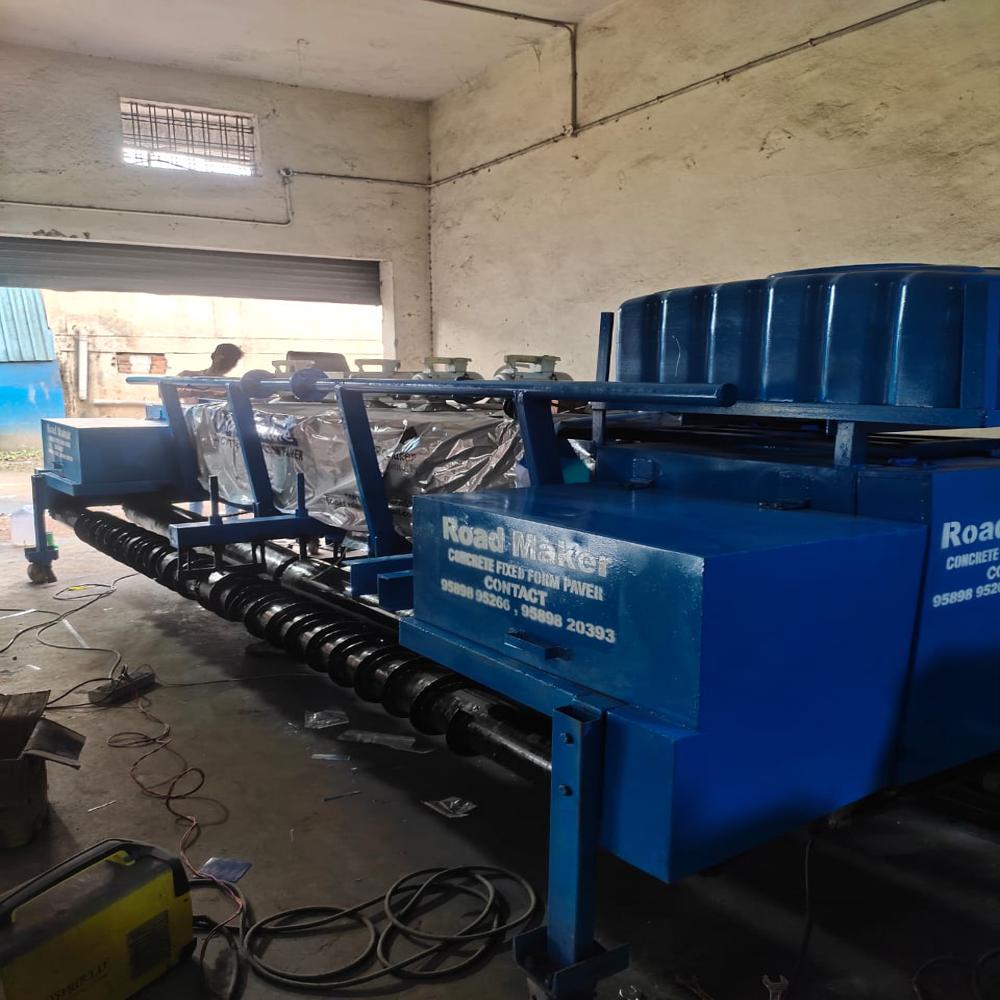

Concrete Road Paver Machine 4.5 meter with center camber

Name: Concrete Road Paver Machine 4.5 meter with center camber
Brand: V S Infrastructure
Price: 750000.0 INR
Availability: InStock

Price 750000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Concrete Road Paver Machine 4.5 meter with center camber Specification

Mount Type
Wheeled Mobile Unit

Coverage Area
4.5 meters width

Driven Type
Electric Motor Drive

Hopper Capacity
500 kg (Approx.)

Working Width
4.5 meters

Noise Level
Below 85 dB

Fuel Type
Electric

Type
Pavers

Material
Heavy Duty Steel Structure

Capacity
120-150 meters/hour

Computerized
No

Automatic Grade
Semi-Automatic

Cooling System
Air Cooled

Vibration Frequency
Adjustable (typically 3000-4000 rpm)

Drum Diameter
350 mm approx.

Power
10 HP Electric Motor

Size
4.5 meter working width

Color
Blue

Weight
2900-3200 Kg (approx.)

Dimension (L*W*H)
6000 mm x 4600 mm x 1400 mm

Surface Treatment
Powder coated for rust resistance

Operating Height (Leveling Range)
Up to 300 mm

Finish Quality
High compaction with smooth surface finish

Control System
Manual lever operated

Length Adjustment
Bolt-on modular extensions for width alteration

Blade Material
Special hardened alloy steel

Number of Vibrators
2 - 3 (as per custom requirement)

Mobility
Four heavy-duty wheels with locking system

Travel Speed
0-5 m/min adjustable

Application
On-site fixed form concrete paving for roads, carriageways, and highways

Camber System
Centre camber with adjustable mechanism for road profile

Roller Type
Tamping bar or auger roller

Electrical Protection
Overload and short circuit protection

About Concrete Road Paver Machine 4.5 meter with center camber

A 4.5 m concrete road paver machine is a heavy-duty road construction machine designed to lay concrete pavement continuously at widths up to 4.5 meters with a controlled centre camber (crown) profile. These machines use a hydraulic-driven telescoping screed with vibration and heating to evenly distribute and compact concrete, and an automatic leveling and center crown adjustment system to achieve precise road gradient and cross-fall for drainage. Theyre commonly used in highways, urban roads, expressways, shoulders, and other large paving projects, delivering high productivity and improved surface quality.

Typical Specifications (Example RP453L / Similar)

Specification	Typical Value
Model / Type	Full-hydraulic concrete road paver
Paving Width (adjustable)	2.75m up to 4 m max
Centre Camber / Crown Control	Adjustable percentage for centre rise

Max Paving Thickness	150350 mm
Paving Speed	05m/min


Machine Weight	2 ton

Superior Paving Efficiency for Road Construction

Engineered for optimal performance, this concrete paver streamlines the road construction process. Its 4.5 meter working width, adjustable camber mechanism, and heavy-duty steel structure enables quick, uniform paving even on large-scale highway projects. The adjustable vibration frequency and tamping bar or auger roller ensure dense compaction and a sleek, durable finish every time.

Robust and Adaptable for Diverse Job Sites

With bolt-on extensions and an adjustable operating height up to 300 mm, this machine can easily adapt to varied paving profiles and site requirements. The special alloy blades, four lockable wheels, and powder-coated frame offer durability, mobility, and resistance to harsh environments, making it suitable for exporters, manufacturers, service providers, and suppliers alike.

FAQ's of Concrete Road Paver Machine 4.5 meter with center camber:

Q: How does the center camber system improve the road paving process?

A: The center camber system, featuring an adjustable mechanism, allows precise shaping of the road profile to ensure optimal water drainage and surface contour. This leads to long-lasting, well-formed roads suitable for various applications.

Q: What are the main benefits of using this concrete road paver machine?

A: Key benefits include consistent high compaction, a smooth surface finish, fast paving speed (up to 150 meters/hour), modular width adjustments, and enhanced safety through overload and short circuit protection. Its durable build and rust-resistant coating extend its service life.

Q: When is this paver most effectively used?

A: This machine is best suited for on-site fixed form concrete paving of roads, carriageways, highways, or large parking lots, particularly where consistent width and compaction are desired. Its adjustable features cater to diverse project requirements.

Q: Where can this machine operate, and how is it moved?

A: The paver operates efficiently on construction sites requiring concrete paving. It is mounted on four heavy-duty wheels with a locking system, enabling easy relocation and stability during use.

Q: What is the process for adjusting the working width?

A: The machine's length is easily adjusted with bolt-on modular extensions, allowing operators to set the working width-up to 4.5 meters-according to site requirements without extensive reconfiguration.

Q: How does the vibration and compaction system enhance pavement quality?

A: With 2-3 adjustable vibrators (3000-4000 rpm) and a tamping bar or auger roller, the paver evenly distributes and compacts concrete, resulting in superior density and a smooth, long-lasting finish.
